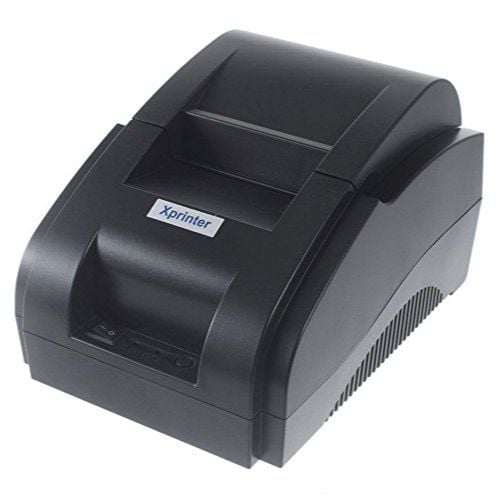

Xprinter XP-58IIH 58mm Thermal Receipt Printer USB Portable Printer

TECHNICAL SPECIFICATIONS

Model
Xprinter XP-58IIH

Printing mode
Direct line thermal

Print width
48mm

Point density
384 points / line

Printing speed
90mm/s

Interface type
USB/USB+B T/USB

Printing paper
57.5 ± 0.5 mm

Row spacing
3.75 mm (line spacing can be adjusted by command)

Number of columns
58mm paper
58mm paper: font a – 32 columns / font B – 42 columns / simple and traditional – 16 columns

Extended character table
PC347（Standard Europe）、Katakana、
PC850（Multilingual）、PC860（Portuguese）、
PC863（Canadian-French）、PC865（Nordic）、
West Europe、Greek、Hebrew、East Europe、Iran、
WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、
PC858、IranII、Latvian、Arabic、PT151（1251）

Barcode Type
UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/
CODE39/ITF/CODABAR/CODE93/CODE128

Input buffer
32k bytes

NV Flash
64k bytes

Power Supply
Input: AC 110V / 220V, 50 ~ 60Hz，Output: DC 12V / 2.6a

Cassette output
DC 12V/1A

Net weight
0.56kg

Products dimensions
180*130*108mm（L*W*H）

Work environment
Temperature
0 ~ 45 ℃, humidity: 10 ~ 80%

Storage environment
Temperature
– 10 ~ 60 ℃, humidity: 10 ~ 90%

Paper width
57.5+/-0.5 Mm

Printer head life
50km
